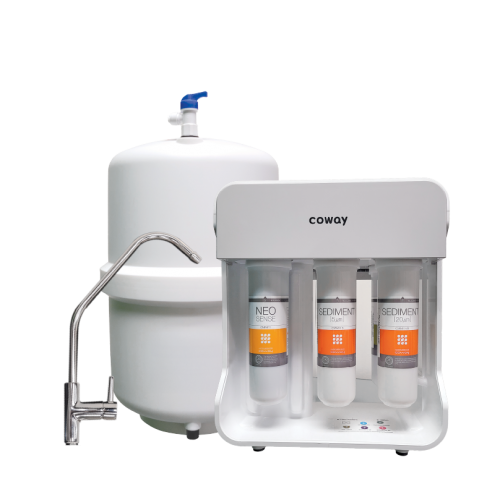

P-09CL
Under Sink Water Purifier
Confirm Service Area
Enter the zip code of your installation address to see service availability.
Experience Coway’s new under-sink water purification system
Fiilter cover cases protects filters from polluted environment.
Reduces the install time by simplifying process
Convenient tool-free filter
replacement
The start of clean and delicious water,
Coway Intensive RO1.0 filter system
RO 1.0 filter
Intensive active dense layer
removes ionic materials that are tens of thousands the size of a hair 1
Intensive coiling
delivers rich capacity of purified water with up to 24 % more dense coiling 2
1 Target substance and size: sulfate ion / 0.4 nanometer. The inspection result (water purifier performance evaluation based on KC mark) of the "Ministry of Environment Notification of Designating Standards, Specifications and Inspection Agencies for Water Purifiers" by Korea Environment Water Works Institute or Korea Conformity Laboratories, a water purifier performance testing agency, in pursuant to Article 43 of Law for the Management of Drinking Water. The performance of the product was evaluated at a pressure of 3.5kgf/cm2 on the product inlet after adding 400mg/L of tap water and sulfate ion to the tank. The removal rate was calculated after sampling and analyzing sulfuric acid ions at the end of extraction (70% based on the acceptable removal rate). As of March 2017, the sulfuric acid ion removal efficiency of the selective purification performance certificate for Coway RO water purifier currently on market in Korea: 93~100%
2 Measurement and comparison of effective membrane area of the in-house general/low-pressure RO membrane filters (RO 1.0 filters): Low-pressure RO filter is wider (18~24%) than general RO filter. Filters measured: General RO membrane filter (11,14 inches), low-pressure RO membrane filter (11,14 inches)
Substances purified by RO 1.0 filter system
3 aesthetically affecting substances / 1 bacterium
1 phenol / 10 volatile organic compounds
3 aesthetically affecting substances 4
3 metals
8 disinfection by-products / 7 remnant drugs
6 environmental hormones / 3 flame retardants
1 disinfectant / 14 volatile organic compounds
3 Removal rate of 15 remnant pharmaceuticals and endocrine disruptors in the WQA performance test based on NSF/ANSI 401 standard: (95.1~98.8)%, Coway Plus Innocence Filter
(8/11/14 inches) only as of March 2017
4 The items that overlap between the nanotrap filter and RO 1.0 filter system based on the WQA performance test of the NSF/ANSI 42 standard are "taste/odor". The nanotrap is certified for class 1 particulate matter and the RO 1.0 is certified for TDS and hardness.
* Slight deviation may occur depending on the filter and use environment such as concentration, temperature, and pressure of raw water.
* Actual filter appearance may vary by product.
* The number of validated purification performance items for each filter mentioned above is based on the Korea Water Mark, overseas WQA NSF/ANSI 42, 53, 58 and 401 certificates and Noroven certificate.
* The classification and name of each category are denoted on the basis of the company standards.
Coway provides most reliable filter system for every filter to be certified by WQA
Most reliable system for every filter to be certified by WQA
Neo-sense
NSF / ANSI Standard 42:
Drinking Water Treatment Units – Aesthetic Effects
Chlorine, Taste and odor,
Particulates, etc
RO-membrane
NSF / ANSI Standard 58:
Reverse Osmosis Drinking
Water Treatment Systems
TDS, Cr(III), Cr(VI), Cd, Nitrate, etc.
Plus Inno-sense
NSF / ANSI Standard 42:
Drinking Water Treatment Units – Aesthetic Effects
Chlorine, Taste and odor, Particulates, etc.
NSF / ANSI Standard 53:
Drinking Water Treatment Units – Health Effects
Cyst, lead, VOCs, MTBE, etc.
| Water Filtration | |
| Filter Cartridge | STEP 1) `11 Sediment 5μm STEP 2) `11 Sediment 20μm STEP 3) `11 Neo-sense (Sediment + Pre-Carbon) STEP 4) `11 RO (Reverse Osmosis Membrane) STEP 5) `11 Inno-sense (Post-Carbon + Fine) |
| Flow rate/ Production Rate | 40.7 gpd (154 lpd) |
| Filter Life | Sedi 5,20μm : 6 Months Neo-sense : 6 Months Nanotrap : 24 Months Inno-sense : 12 Months |
| Filtration Capacity | 4.4 gal (16.65 ℓ) |
| Tank Capacity|Ambient | 4.4 gal (16.65 ℓ) |
| Tank Capacity|Cold | - |
| Tank Capacity|Hot | - |
| Power consumption|Compressor | - |
| Power consumption|Heater | - |
| Feed Water Pressure | 20~120psi (138kPa~827kPa) |
| Feed Water Temperature | 41℉~95℉ (5℃~35℃) |
| Dimensions(W X D X H) | 13.8 X 8.7 X 16.4 inch (350 X 220 X 417 mm) |
| Net Weight | 27.5 ℓb (12.5 kg) |
| Remark | |
| Main features | |
| Purified Water | |
Complimentary Coway Heart Service When You Lease
When you need us, we’ll be there. Our heart service team members will always act as fast as possible to overcome any troubleshooting, maintenanace, or installation.A speedy and caring response is our promise.
Learn More| Filter | Recommend Replacement Cycle | Quantity | Price | |
|---|---|---|---|---|
.png "Plus Inno Sense (D) Filter (CIFM11-D-PLUS)")
Plus Inno Sense (D) Filter (CIFM11-D-PLUS)
|
Recommended Replacement Cycle: 12 months |
|
$61.00 | |
.png "RO Membrane Filter (CRMFM11-50)")
RO Membrane Filter (CRMFM11-50)
|
Recommended Replacement Cycle: 20 months |
|
$127.00 | |
.png "Neo Sense Filter (CNFM11)")
Neo Sense Filter (CNFM11)
|
Recommended Replacement Cycle: 8 months |
|
$35.00 | |
![Sediment [20 micron] Filter (CSFM11-20)](https://coway-usa.com/image/catalog/Filter2022/3118888_square (Large).png "Sediment [20 micron] Filter (CSFM11-20)")
Sediment [20 micron] Filter (CSFM11-20)
|
Recommended Replacement Cycle: 4 - 6 months |
|
$32.00 | |
![Sediment [5 micron] Filter (CSFM11-5)](https://coway-usa.com/image/catalog/Filter2022/3118891_square (Large).png "Sediment [5 micron] Filter (CSFM11-5)")
Sediment [5 micron] Filter (CSFM11-5)
|
Recommended Replacement Cycle: 4 - 6 months |
|
$33.00 |
